WCDMA-3G signal amplifier 2100MHz-repeater
WCDMA-3G signal amplifier 2100MHz-repeater
How it works:
1. The external antenna picks up the low signal from the mobile transmitter and supplies it to the amplifier via a connecting cable (coaxial).
2. After the signal is received by the amplifier, the device amplifies the signal.
3. This amplified signal is then fed via a supply cable (coaxial) to the indoor antenna.
4. The amplified signal is then transmitted to the mobile phone
How to install:
1. Step 1: Use your mobile phone to test the signal strength outside in front of the house or on the roof, -70dbm is a basic requirement (full bar).
2. Step 2: Install the outdoor antenna in the location with the strongest signal and point the antenna at the location where the mobile operator's transmitter is likely to be located.
3. Step 3: Lower the outdoor coaxial cable into the building in the convenient position and connect the signal repeater.
4. Step 4: Connect your indoor antenna to the signal repeater
5. Step 5: Turn on the signal repeater, check if the signal goes in and move the outdoor antenna until you get the best signal
Specifications:
Model no
RE-WCDMA-G
Data parameter
Uplink
Downlink
Frequency range
3G
1920-1980mhz
2110-2170mhz
Output power
20 ± 2dBm
20 ± 2dBm
Profit
65 ± 2 dB
65 ± 2 dB
Bandwidth
60M
Ripple in the band
≤5dB
Disruptive emissions
9kHz ~ 1GHz
≤ -36 dBm
1GHz ~ 12.75GHz
≤ -30 dBm
PSV
≤3
MTBF
> 50,000 hours
Power supply
AC: 100 ~ 240V, 50 / 60Hz, DC: 12V 2A
Power consumption
<5W
Impedance
50 ohm
Mechanical specification
RF connector
N-Female N
Dimensions (D * W * H)
198 * 182 * 20 (mm)
Net weight
1.2 kg
Installation type
Wall Installation
Environmental protection conditions
IP40
Humidity
<90%
Operating temperature
-10 ° C ~ 55 ° C

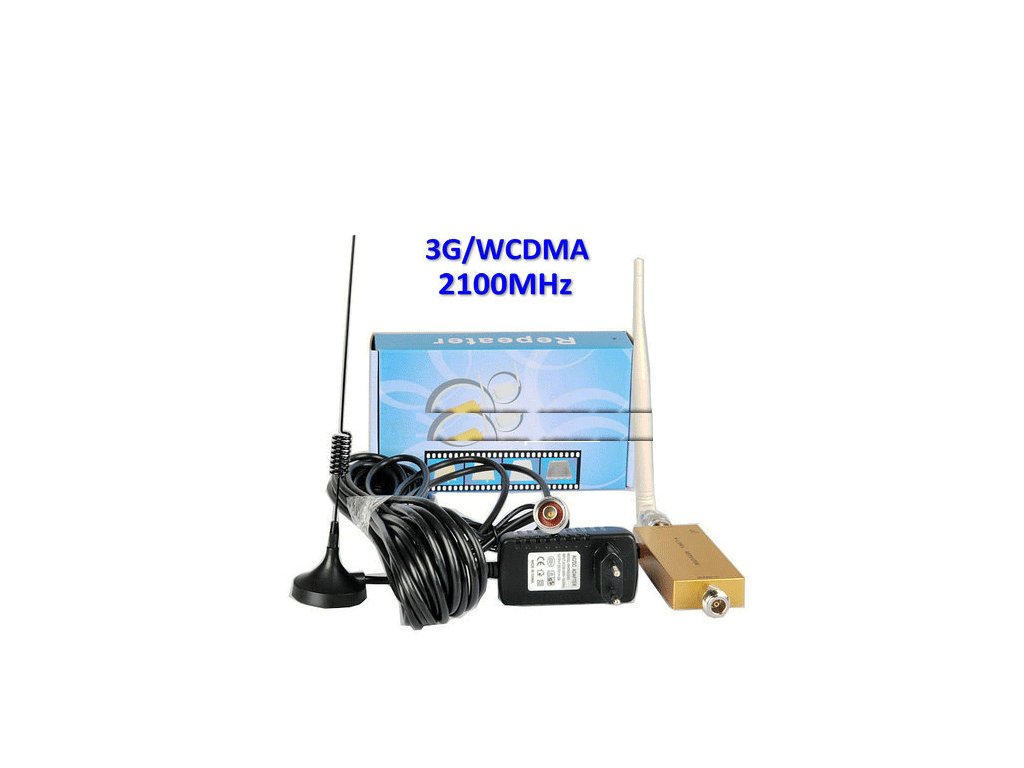

Package contents:
- 1 x Outdoor antenna
- 1 x Indoor antenna
- 1 x 5 m RG6-50 OHM internal coaxial cable
- 1 x Mounting Accessories Set
- 1 x AC adapter
- 1 x Manual EN
